Random start position plot Plot of statistics for random phase B start positions — scplot_rand • scplot

Random start position plot Plot of statistics for random phase B start positions

scplot_rand(
  scdf,
  statistic = "Mean B-A",
  x_label = "Start phase B",
  color_label = "Compared to\nobserved",
  colors = c(Above = "coral3", Below = "aquamarine4", Observed = "#56B4E9", Equal =
    "black"),
  ...
)

Arguments

scdf: A single-case data frame object.
statistic: A string with a the name of a statistic. Defaults to Mean B-A. See rand_test() function for all options.
x_label: Character string with the x label.
color_label: Character string with the color label.
colors: Named vector with color codes.
...: further arguments passted to the scan rand_test() function.

Examples

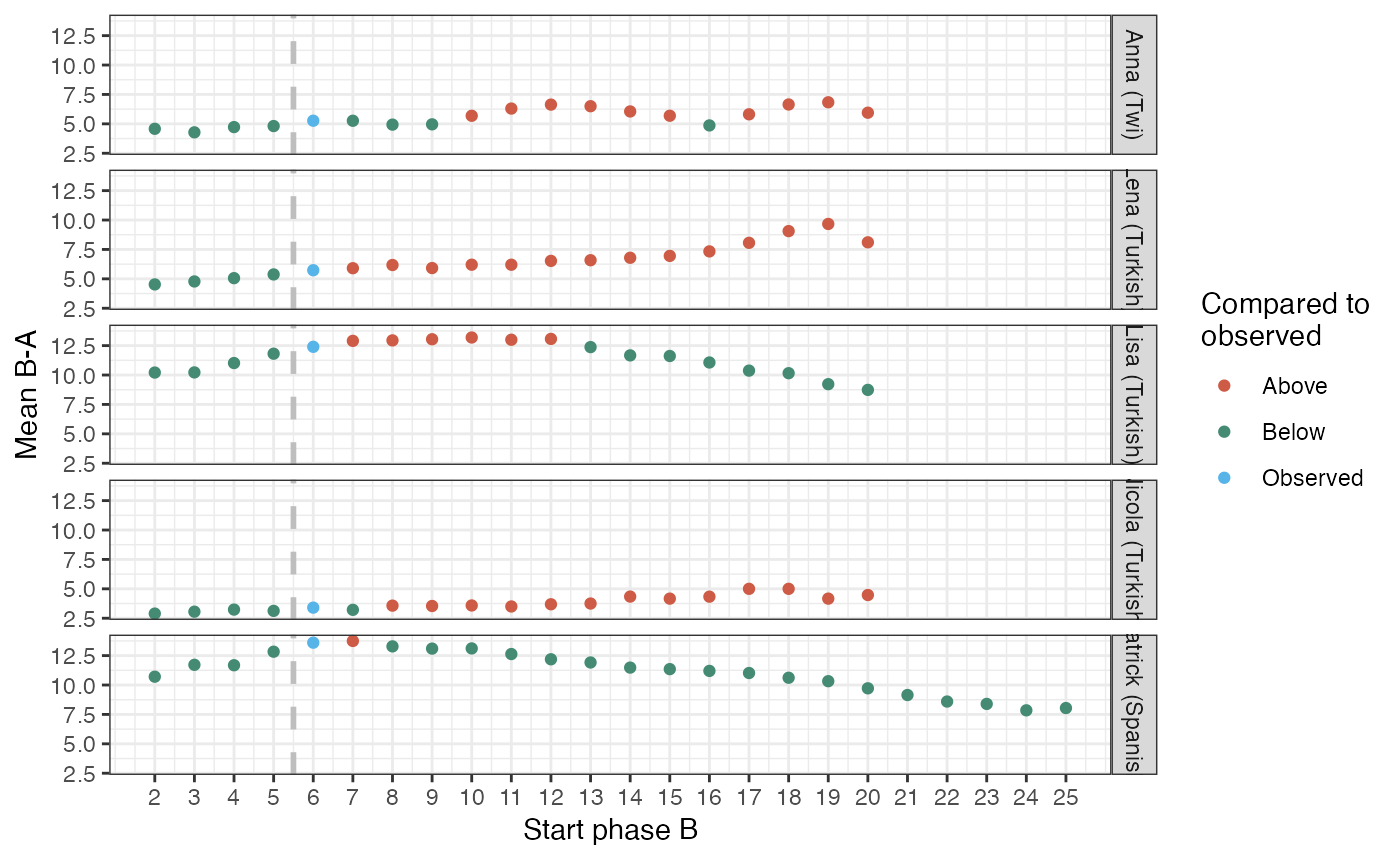

scplot_rand(scan::byHeart2011[1:5])
